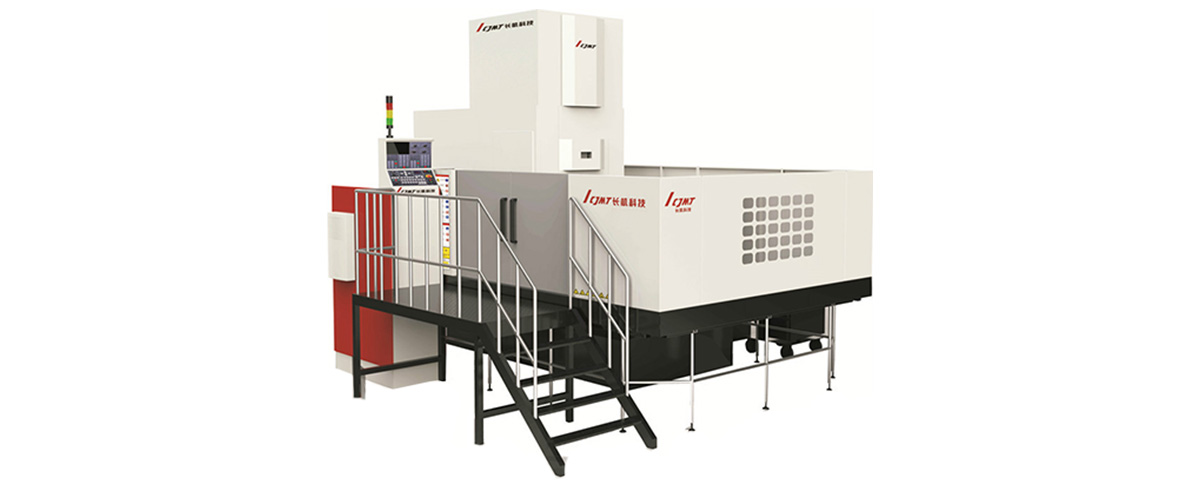

One SKXC-2000/16 CNC high-speed gear milling machine produced by Nanjing University of Technology

Maximum outer tooth processing: 2000mm, inner tooth 550

Maximum gear module for machining: 26, internal teeth 20

Processing spiral angle: ± 22.5 °

Maximum tooth width for machining: 700mm

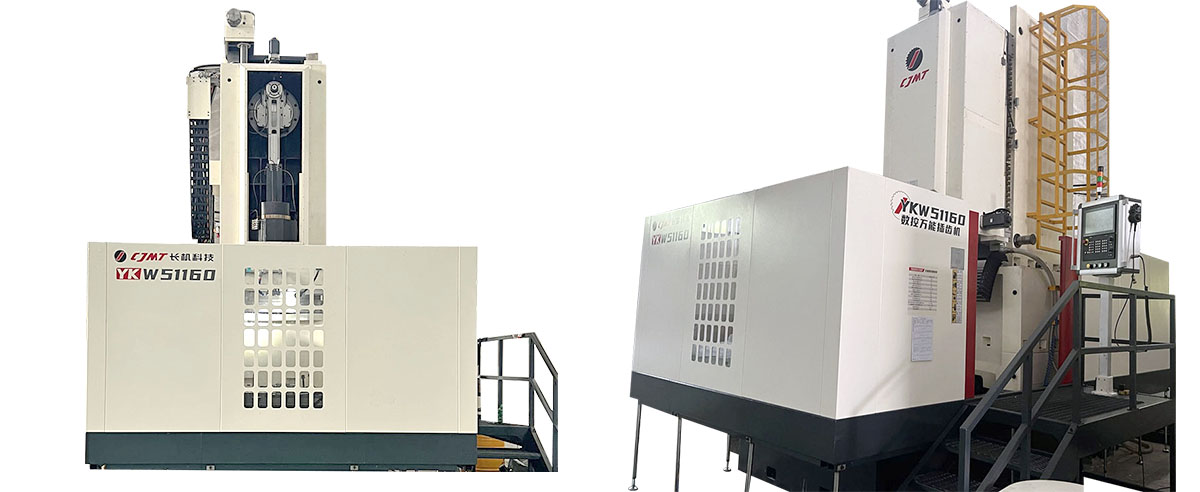

One YKW51160 CNC universal gear hobbing machine produced by Changji, capable of inserting helical gears

Maximum working diameter outer/inner teeth: 1600/2100

Maximum modulus: 20

Maximum tooth width: 350mm

Workbench diameter: 1600mm

Distance from spindle end face to workbench: 1600mm

Processing spiral angle: ± 45 °

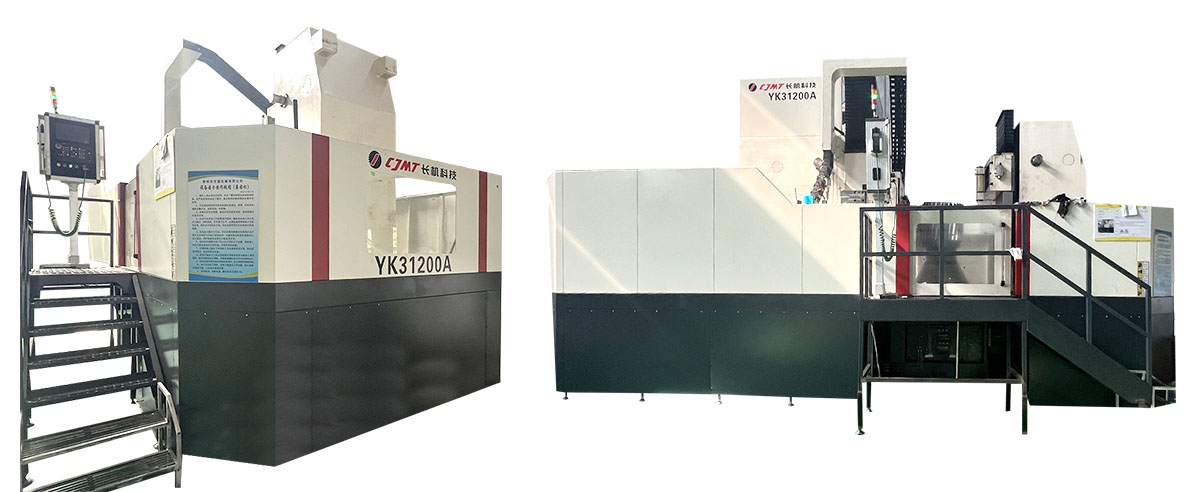

One YK31200A CNC high-speed gear hobbing machine produced by Changji

Maximum diameter gear hobbing: 2000mm

Maximum diameter with tailstock: 1300mm

Maximum modulus: 25

Maximum helix angle: ± 45 °

Maximum tooth width (straight/oblique): 800

One YKW51160C CNC gear hobbing machine produced by Changji

Maximum working diameter outer/inner teeth: 1600/2100

Maximum modulus: 20

Maximum tooth width: 350mm

Workbench diameter: 1600mm

Distance from spindle end face to working face: 1400mm
